1. Prepare the slab and walls
Level the ground, construct a stable foundation, and build perimeter walls to support the tank structure.
Install New Elevetor Tank in 5 easy steps
19 March 2025
New Elevetor Tank is a permanent recycled plastic formwork for casting concrete rainwater storage tanks on-site in just five simple steps.
New Elevetor Tank is our permanent formwork for creating concrete rainwater accumulation tanks cast on-site. Designed for efficiency, it consists of only 3 components, ensuring streamlined installation in just 5 easy steps.

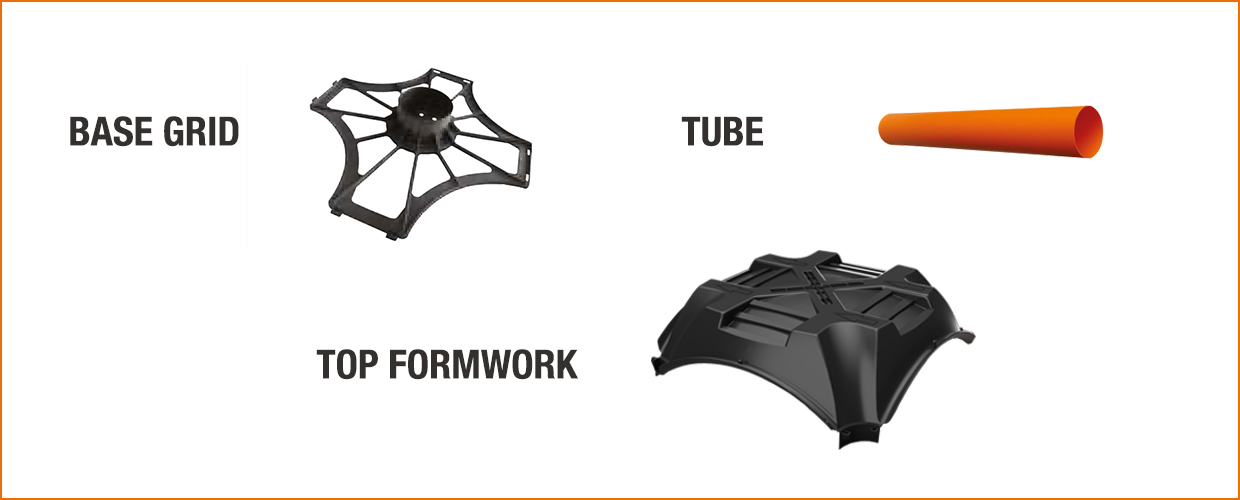

New Elevetor Tank components
New Elevetor Tank consists of only 3 components, ensuring quick assembly and lower labor costs:
- Base grid – creates a matrix for system alignment,
- Vertical tubes – up to 3 m in height, cut to size for customizable tank height,
- Top formwork – provides a support surface for reinforcement placement and concrete pouring.
5 simple installation steps
2. Place the base grid
Position the base grid over the prepared concrete surface, align the modules, and lock them together.
Position the base grid over the prepared concrete surface, align the modules, and lock them together.
3. Position the tubes
Cut the vertical tubes to the required height, insert them into the base grid, and ensure proper alignment.
Cut the vertical tubes to the required height, insert them into the base grid, and ensure proper alignment.
4. Install the top formwork
Secure the top formwork onto the tubes, create a stable structure, and place reinforcement as specified.
Secure the top formwork onto the tubes, create a stable structure, and place reinforcement as specified.
5. Pour the concrete
Pour the concrete evenly, let it set, and apply the finishing layers according to project requirements.
Pour the concrete evenly, let it set, and apply the finishing layers according to project requirements.
For more details about New Elevetor Tank installation, contact Luca Zausa at luca.zausa@geoplastglobal.com connect with him on Linkedin.
