MINIMODULO is an injection molded formwork for the construction of ventilated foundations.
Minimodulo Data
Technical details
MINIMODULO is an injection molded formwork for the construction of ventilated foundations.
LOAD | THICKNESS | e.w. MESH | THICKNESS | THICKNESS | PRESSURE |
500 | 5 | Ø5 / 25×25 | 5 |
| 0,21 |
1,000 | 5 | Ø6 / 20×20 | 5 |
| 0,42 |
2,500 | 5 | Ø6 / 20×20 | 5 |
| 1,06 |
5,000 | 5 | Ø8 / 20×20 | 10 |
| 0,76 |
10,000 | 6 | Ø10 / 20×20 | 5 | 10 | 0,77 |
>10,000 | To be evaluated on a case by case basis, please contact Geoplast Technical Department | ||||
MINIMODULO – Available sizes and packaging
MINIMODULO originates from MODULO formwork and is available in three different sizes: H3, H6, H9 cm:
| MINIMODULO | H3 | H6 | H9 | |
| Size (cm) | 50 x 50 x h3 cm | 50 x 50 x h6 cm | 58 x 58 x h9 cm | |
| h clear span | 2,1 cm | 4,5 cm | 7,5 cm | |
| L | 5,5 cm | 5,4 cm | 14,5 cm | |
| Concrete consumption (up to the top) | 0,004 m3 x m2 | 0,009 m3 x m2 | 0,010 m3 x m2 | |
| A x B x H (cm) | 120 x 102 x h220 cm | 120 x 102 x h220 cm | 120 x 102 x h240 cm | |
| No. pcs. per pallet | 720 | 720 | 720 | |
| m2 per pallet | 180 | 180 | 240 | |
Installation instructions
VENTILATED FLOORS

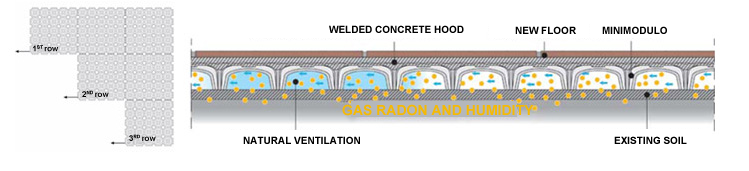

MINIMODULO is particularly suitable for floor renovation, as it can be installed on existing floors and walls.
MINIMODULO is ideal for parquets and floor carpets, which usually are damaged by rising damp, condensation and molds that reduce the life of the floor.
Moreover, MINIMODULO allows a lightening of the slab weight.
- Prepare a lean concrete base (in case of renovations, the base for MINIMODULO can be the existing floor or screed)
- Installation of MINIMODULO.
- Place the wire mesh directly above MINIMODULO.
- Perform a single concrete pour of the ground slab.
- Possible installation of a thermal-acoustic insulation.
- Perform a single concrete pour for the insulating interstice.
- Floor laying.
VENTILATED ROOFS
MINIMODULO can be used also for the ventilation of roofs, as it improves living comfort and extends the life of the roof.
It reduces heat transmission and temperature difference between the home and the outside environment, cooling the attic in summer and warming it in winter. It prevents the formation of condensation between tiles and the waterproofing, which can reduce the durability of the tiles and penetrate to the ceiling, creating mold and moisture problems. It reduces external noise and lightens the structure, especially with wooden roofs.
.
- Lay the waterproofing.
- Place the thermal insulation.
- Place the vapor barrier.
- Installation of MINIMODULO.
- Cover MINIMODULO with concrete.
- Place the tiles.
Comparison
Comparison with similar systems
| SYSTEM | MINIMODULO SYSTEM | ANTI RADON SHEAT | DIMPLED MAT |
| MATERIAL | POLYPROPYLENE | polyethylene | HDPE |
| Water resistance | WATERPROOF | WATERPROOF | WATERPROOF |
| Size (cm) | 50×50 / 58×58 | ROLLS | ROLLS |
| AIR VOLUME (liters/m2) | ≈ 40 | N/A | 5,3 |
| WEIGHT SYSTEM (kg/m2) | 3,04 / 3.33 | 0,3 | 0,5 |
| Slab thickness (cm) | > 1 | N/A | 8.5 |
| Maximum load (kg/m2) | UP TO 5000 | N/A | N/A |
| Concrete consumption (m3/m2) | 0,004 / 0,010 | NON PREVISTO | N/A |
| Installation time (m2/hour) | ≈ 100 | N/A | N/A |
| Monolithic system | YES | NO | NO |
| Installation | MANUAL | MANUAL | MANUAL |
TECHNICAL ADVANTAGES
The shape of MINIMODULO allow high load-bearing capacity, even with a thin concrete slab. It can be installed even above partially prepared bases.
- Easy installation with significantly reduced installation times
- Elimination of rising damp thanks to the natural ventilation under the floor and inside the walls
- Natural or forced ventilation over the entire surface with dispersion of radon gas
- Easy and cost-effective maintenance and accessibility of pipes and electric plants
- MINIMODULO is also suitable for underfloor heating
- Due to its low height MINIMODULO is ideal for renovations and can be laid directly onto an existing floor
- MINIMODULO is ideal for floor lightening in renovations
- Reduction of noise transmission thanks to the acoustic insulation produced by the air gap
