LOAD (Kg/m) |
THICKNESS slab (cm) |
e.w. MESH (mm) |
THICKNESS lean concrete (cm) |
THICKNESS lean concrete (cm) |
PRESSURE ground (Kg/cm) |
500 |
5 |
Ø5 / 25×25 |
5 |
0,21 |
|
1,000 |
5 |
Ø6 / 20×20 |
5 |
0,41 |
|
2,500 |
5 |
Ø6 / 20×20 |
5 |
1,03 |
|
5,000 |
6 |
Ø8 / 20×20 |
10 |
0,83 |
|
10,000 |
8 |
Ø8 / 20×20 |
5 |
15 |
1,07 |
>10,000 |
Evaluate it on a case by base basis contacting Geoplast Technical |

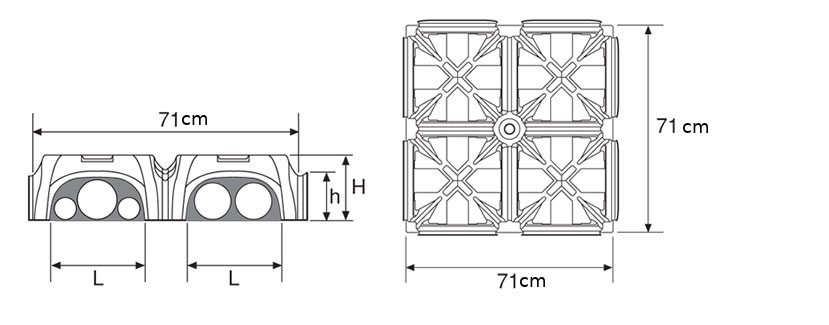

MULTIMODULO | Dimensions (cm) | Concrete consumption m³/m² | Package dim. (cm) | Package (m²) | No. pieces | Weight per unit (kg) | |
MULTIMODULO H13 |
71×71 |
0,020 |
151 x 151 x H225 |
180 |
360 |
2,05 |
|
MULTIMODULO H15 |
71×71 |
0,027 |
151 x 151 x H225 |
180 |
360 |
2,09 |
|
MULTIMODULO H17 |
71 x 71 |
0,028 |
151 x 151 x H226 |
180 |
360 |
2,15 |
|
MULTIMODULO H20 |
71×71 |
0,032 |
151 x 151 x H250 |
150 |
300 |
2,42 |
|
MULTIMODULO H25 |
71×71 |
0,033 |
151 x 151 x H235 |
180 |
360 |
2,51 |
|
MULTIMODULO H27 |
71×71 |
0,035 |
151 x 151 x H235 |
180 |
360 |
2,56 |
|
MULTIMODULO H30 |
71×71 |
0,042 |
151 x 151 x H250 |
150 |
300 |
2,86 |
|
MULTIMODULO H35 |
71×71 |
0,045 |
151 x 151 x H240 |
180 |
360 |
2,66 |
|
MULTIMODULO H40 |
71×71 |
0,050 |
151 x 151 x H265 |
150 |
300 |
3,30 |

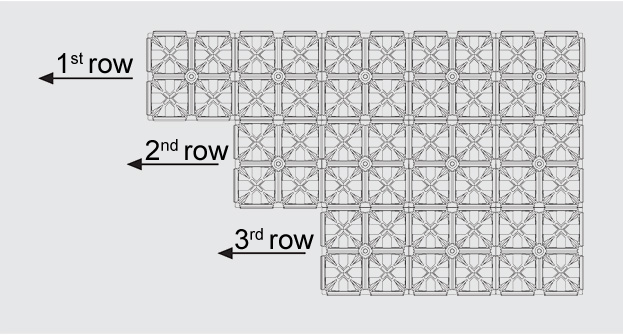

To correctly join MULTIMODULO parts, simply superpose the female and male U-lips of the forms.

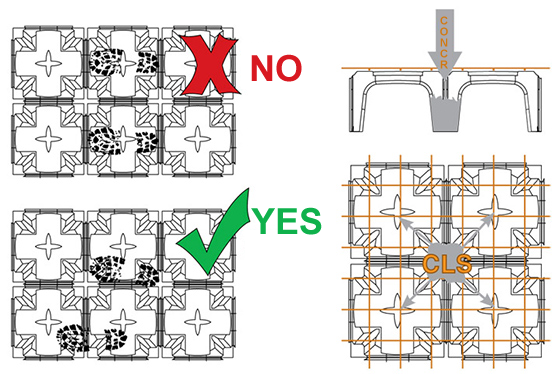

Make sure that the parts are perfectly joined and form an even surface, without openings between the forms.

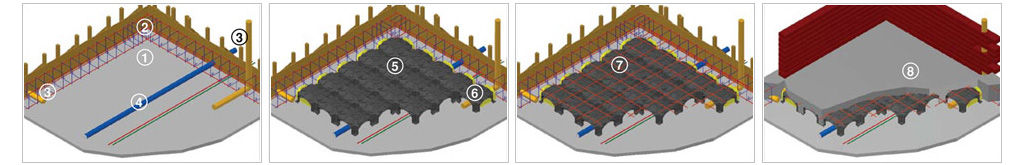

Follow the installation instructions for a correct installation.
It is possible to adjust the length of GEOBLOCK sliding it underneath MULTIMODULO.
The lenght of GEOBLOCK can be adjusted according to the project requirements.
SYSTEM | MULTIMODULO SYSTEM | PREFABRICATED | WALLS AND HOLLOW TILES |
MATERIAL | POLYPROPYLENE | CONCRETE | CLAY |
Water resistance | WATERPROOF | POROUS | POROUS |
Size (cm) | 71 x 71 | 60 x L* | 61 x L |
Height ventilated crawl space (cm) | UP TO 40 | UNLIMITED | UNLIMITED |
Weight single element (kg/m2) | 2,05 / 3,30 | N/A | 60 |
Slab thickness (cm) | > 5 | 3/5 | Hollow tile 5/6 – Slab 5<>15 |
Maximum load (kg/m2) | UP TO 10000 | 500 | N/A |
Concrete consumption (m3/m2) | 0,020 / 0,050 | In function of the slab thickness | In function of the slab thickness |
Installation time (m2/hour) | ≈ 100 | N/A | 10 |
Monolithic system | YES | NO | NO |
Installation | MANUAL | MECHANICAL TOOLS | MANUAL |
