GRIPPER DOUBLE GRID | |
SIZE | 30,5 x 30,5 x h1,5 cm – 10,75 pc/m2 |
WEIGHT (kg/m2) | 3,225 |
MATERIAL | Graplene VN |
LOCKING SYSTEM | Fast with snap-fit |
SURFACE FINISHING | Doubble crossed grid at 45° |
RECOMMENDED SPORT | basketball – futsal – volleyball – soccer – tennis – hockey/skating |
PACKAGING SIZE | 100 x 120 x h210 cm 1.500 pc = 140 m2 |
Installation surface: Gripper should preferably be laid on flat rigid surfaces with a smooth finish (concrete, asphalt, resins, floors, etc.). Before applying Gripper, the surfaces must be cleaned of dirt, dust, oil, grease, adhesive residues, and other foreign materials.

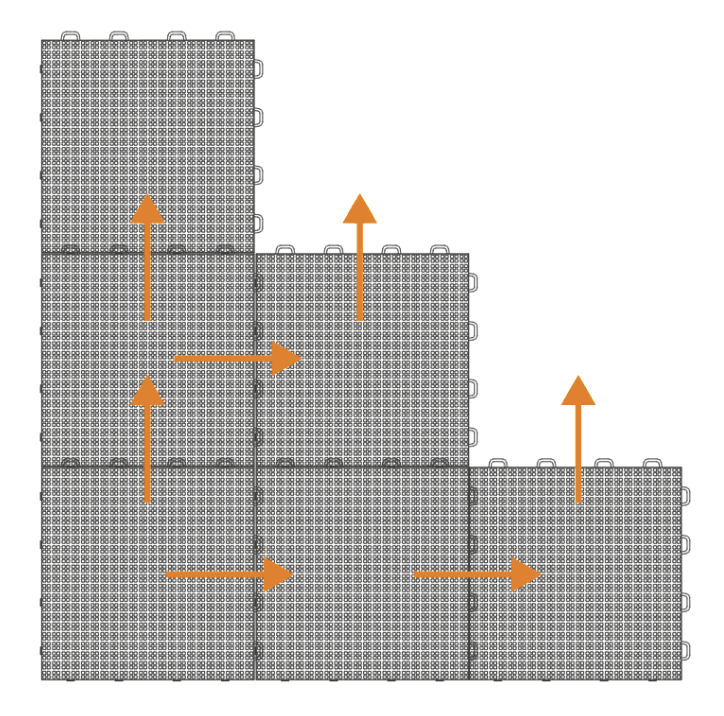

Gripper installation: The tiles are laid using a quick snap-fit coupling. The direction of installation is from bottom to top and from left to right, keeping the hooks up and to the right. For faster installation, the sheets of 4 x 3 tiles can be hooked directly (always following the direction of installation), which are supplied already hooked and stacked on pallets. In the event of outdoor installation, an expansion joint must be left near the curbs and any other object that could hinder thermal expansion. The expansion space depends on the size of the playing field, but at least 5/10 cm is recommended.
Drawing demarcation lines: Thoroughly clean Gripper flooring surface. The lines must be drawn with normal road-type paint, first delimiting the lines with paper tape and then marking them with paint, finally removing the tape when the work is completed.
Cleaning: Gripper can be cleaned like a normal smooth sports surface, with water, non-aggressive detergents, vacuum cleaner, brushes, etc.
