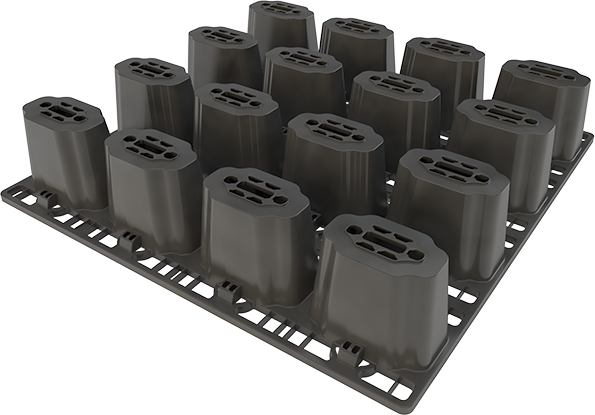

Drainpanel Data

DRAINPANEL

–

Technical Data

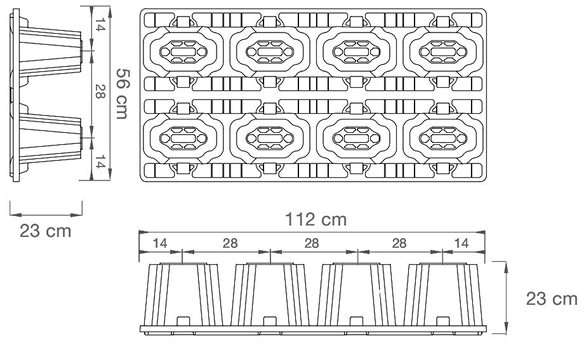

DRAINPANEL		DP-HALF
Actual size (cm)	112x112x23	Actual size (cm)	112x56x23
Material	PP	Material	PP
Weight (kg)	10	Weight (kg)	5
Void ratio (m)	0,25	Void ratio (m)	0,125
Voids percentage	96%	Voids percentage	96%
Packaging size (cm)	112x112x250	Packaging size (cm)	112x112x250
No. pcs. per pallet	75	No. pcs. per pallet	150

Drainpanel rainwater accumulation and dispersion basins

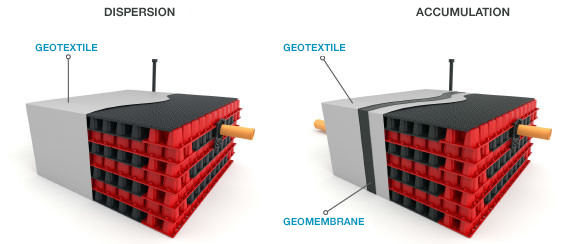

DIFFERENT USE DEPENDING ON THE COVERING

Depending on the type of geo-textile used, the structure of DRAINPANEL is ideal for the dispersion of water in the ground and also for the lamination or accumulation of water.

Drainpanel elements stacked to save storage space

DRAINPANEL STORAGE AND TRANSPORT

DRAINPANEL innovative design permits the easy stacking of the elements (the ones in the same direction) and the reduction of the space used for the storage and transport of the materials. It is also possible to create larger water retention volumes by stacking the elements in layers, oriented alternatively by 90 degrees.
